Footrests for Total Knee Replacement

SchureFoot Footrest

click to enlarge

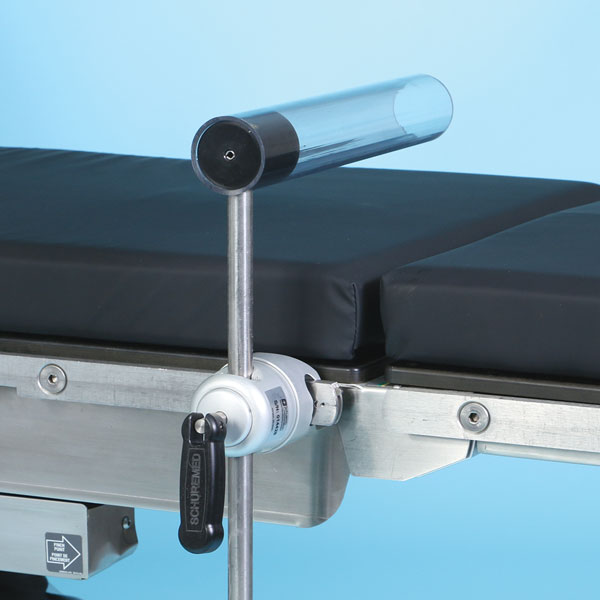

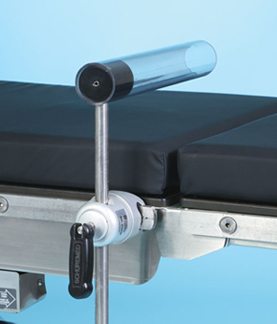

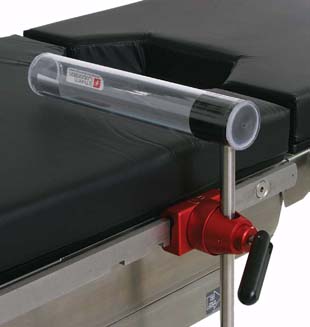

Clear Lexan® SchurFoot Footrest is shown above.
(Disposable pads are sold separately)

SchureFoot Footrest

click to enlarge

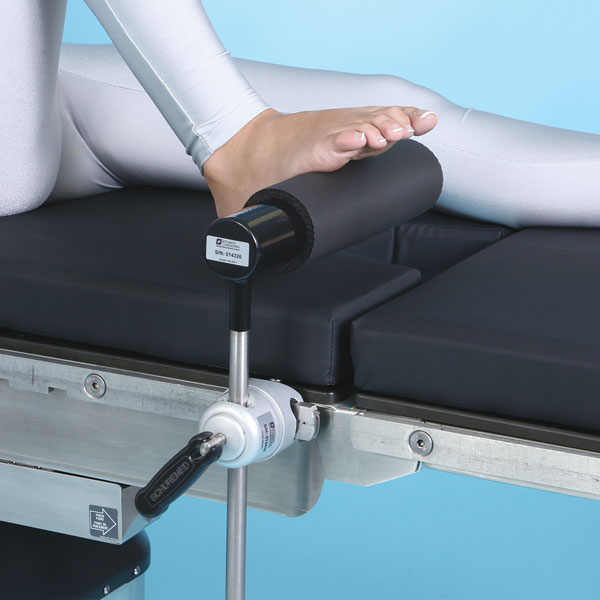

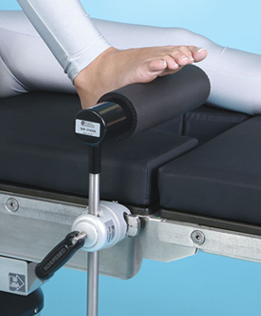

Stainless Steel SchureFoot Footrest is shown above. (Disposable pads are sold separately)


SchureFoot Footrest
for Total Knee Replacement

  • This specially designed 12" long foot rest is used during total knee replacement surgery.


  • It is available in clear radiolucent Lexan® or non-radiolucent Stainless Steel.


  • The surgeon can replace the patient's knee while the foot is held firmly in place.

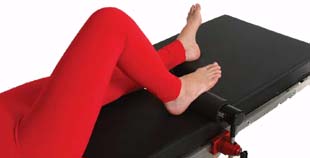

  • Patient's well leg lies flat.


  • Disposable conductive, non-latex foot pads are sold separately. Sold 12 per case.


  • Schure Socket is sold separately.


  • Disposable foot pads are sold separately.


  • A reusable foot pad is not available.


  • Warranty is 2 years.


  • Dimensions of Radiolucent Lexan Footrest:
    Post height: 14¼"; Footrest length: 11¾";
    Footrest diameter is 2".


  • Dimensions of Stainless Steel Footrest:
    Height of post: 16"; Footrest length: 12";
    Footrest diameter is 2".


  • Custom length posts and footrests are available with an upcharge. Requires a longer lead time.

Updated 7/24



SW-80-0011

Clear Lexan SchureFoot
Footrest:


Your cost: $336



SW-80-0062
Stainless Steel
SchureFoot
Footrest:

Your cost:
$345


SW-80-508-0111
Disposable
Foot Pads:


Your cost: $162/
case of 12 pads.


SW-80-0134
Schure Socket XL

Your cost: $322



Schure Socket XL Clamp

click to enlarge

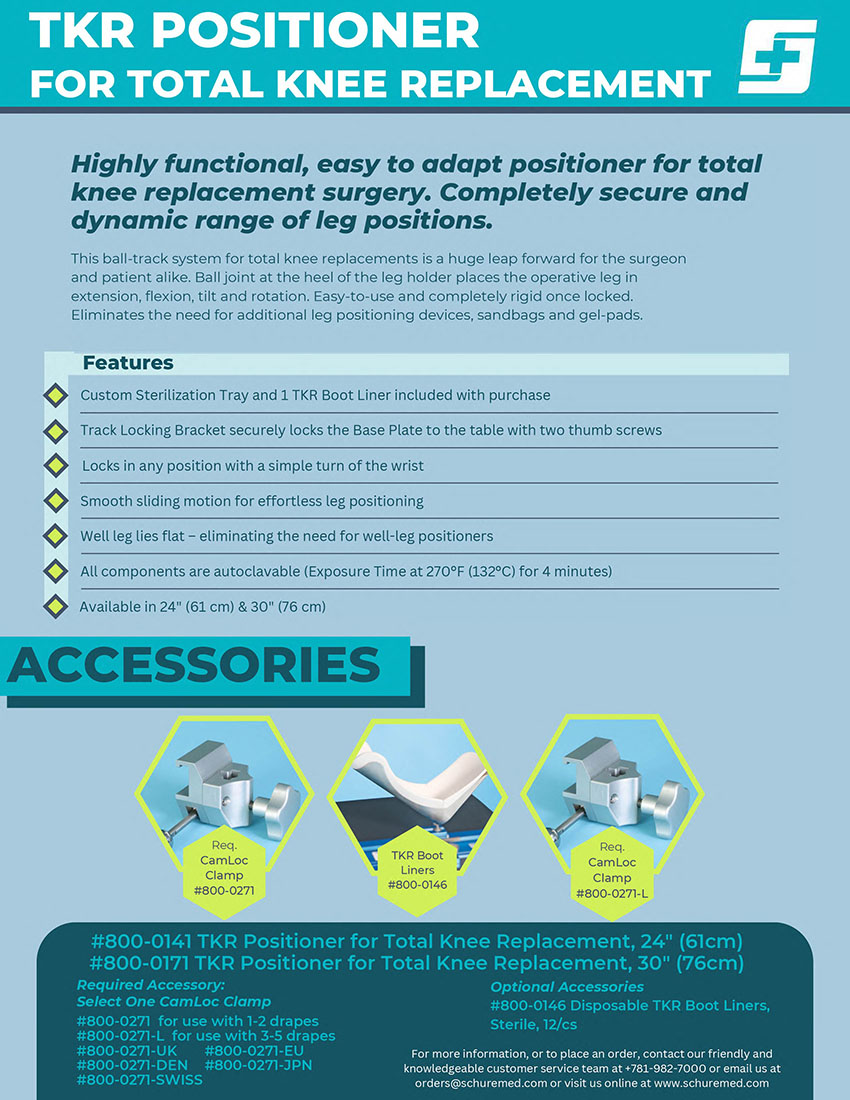

TKR Postioner for Total Knee Replacement

TKR Postioner for Total Knee Replacement

Demonstration Video
  • Designed for use during total knee replacement surgery.

  • Recently updated with boot mounted on an adjustable/ swivel ball.

  • Allows the surgeon to place the patient's knee into precise angles and positions.

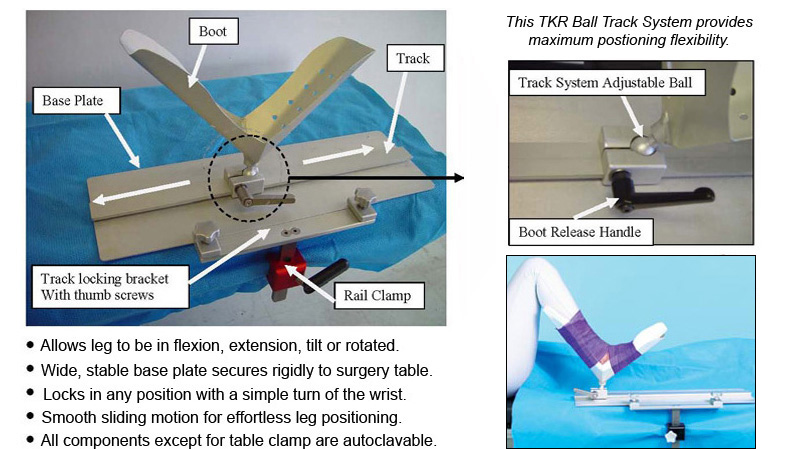

  • The TKR Ball Track System allows the surgeon to position the operative leg in extension, flexion, tilt and rotation.

  • It can be set anywhere along the track for the desired surgical exposure.

  • This specially designed foot holder conveniently slides back and forth on a track that is built into the frame.

  • It locks anywhere along the track allowing the surgeon to re-position the operative knee exactly as needed.

  • Solid stainless steel and anodized aluminum construction means durability and long life.

  • #SW-80-0141 SchureFoot, TKR Ball Track System with 24" long base plate and Custom Sterilization Tray: Your cost: $4,374. Manufacturer's Warranty: 2 years.

  • #SW-80-0171 SchureFoot, TKR Ball Track System with 30" long base plate and Custom Sterilization Tray:  Your cost: $4,374. Warranty: 2 years.

  • #SW-80-0271 CamLoc Clamp for TKR Ball Track System. Your cost: $372 ea. Warranty: 2 years.

  • #SW-80-0146 Sterile, disposable foot pad liners: $308 per case of 12. Note: Sterile cohesive wrap is not included.

SchureFoot TKR Ball Track System User Manual


Please note:
All prices quoted are FOB Factory. Freight is pre-paid and added to invoice. Any returns
are subject to manufacturer's restocking charge. Customer is responsible for return freight. No credit
is given on inbound freight cost. Prices are subject to change without notice. Terms & conditions

Average delivery time is 1 to 2 weeks.
