Surgical Armboards and Related Products for Surgery & Imaging Tables


Surgical Armboard, Height Adjustable, Drop-Latch Style (For Surgery Tables)	Surgical Armboard Extra Wide Design (For Surgery Tables)		Carbon Fiber Armboard Shoulder Mount Design (For Medical Imaging Tables)	Carbon Fiber Armboard Rail Mount Design (For Medical Imaging Tables)


Surgical Armboard Pads	Reusable Armboard Straps	Armboard Holder	Armboard Storage Rack

Related Products:


Surgery Table Pads	Arm & Hand Tables	Arm Preppers	Security Straps

Surgery and Imaging Table Armboards

Standard Replacement
Surgical Table Armboard

Choose from different pad
thicknesses and armboard sizes.

click to enlarge

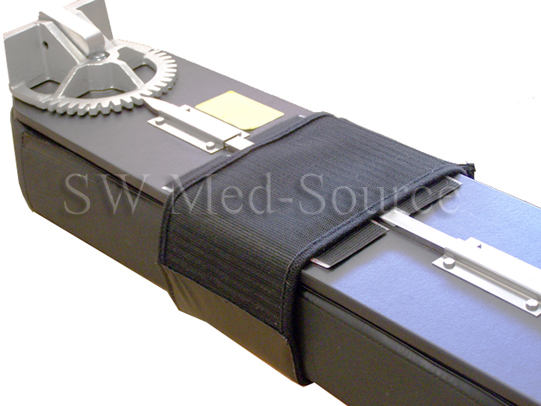

Designed with extra strong gear casting
to eliminate broken teeth issues.

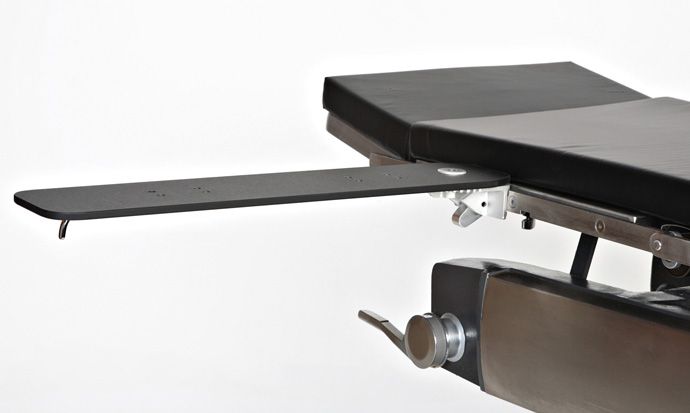

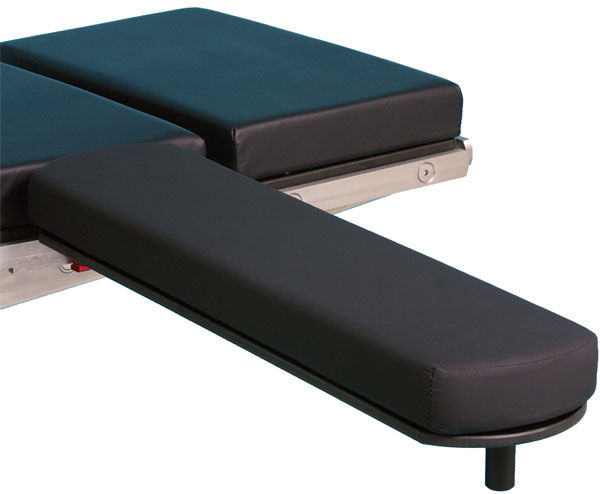

Surgical Armboard, Standard Drop-Latch Style

Compatible with all U.S. made operating room table rails. Standard U.S. table rails measure 1 1/8" x 3/8".
Tried and proven surgical armboard design except it is designed with an extra strong gear casting to eliminate broken teeth issues.
Drops onto rail and locks with a weighted trigger lock design.
Releases off rail by simply holding trigger lock up and lifting the outer end of the board.
Finger latch trigger on outer end of board allows for 180° lateral adjustment.
Manufactured with 3/8" phenolic. Weight: Just 4½ lbs.
Two size choices: 6" wide x 26" long or 6" wide x 24" long.
Pad is sold separately.

Updated 7/24

Why pay more for
surgical armboards?

SW-40-410
24" long armboard:
Your cost: $212

SW-40-411
26" long armboard:
Your cost: $197

SW-40-415
2" thick x 24" long pad:
Your cost: $63

SW-40-416
2" thick x 26" long pad:
Your cost: $63

SW-40-417
3" thick x 26" long pad:
Your cost: $72

click to enlarge

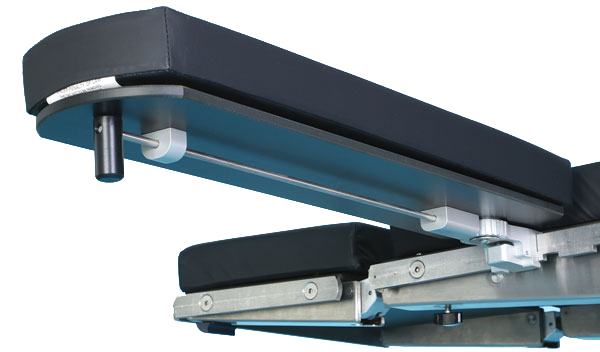

Surgical Armboard, Standard Drop-Latch Style

Lightweight, extremely durable and radiolucent.
Compatible with all U.S. made operating room table rails. Standard U.S. table rails measure 1 1/8" x 3/8".
Excellent construction and design but without the high price often charged by O.R. table companies.
Snaps tightly onto your table sidrail and it provides a full range of motion, swings 180°.
Includes a larger, more convenient trigger mechanism.

Updated 7/24
SW-80-0008
Surgical armboard,
6" wide x 26½" long
without pad:
Your cost: $295

SW-80-508-0071
Deluxe armboard pad,
2" thick x 26½" long :
Your cost: $149

SW-80-508-0151
Softcare armboard pad,
2" thick x 26½" long:
Your cost: $135

Height Adjustable
Surgical Table Armboard

click to enlarge

Add versatility and convenience with a
height adjustable surgical armboard.

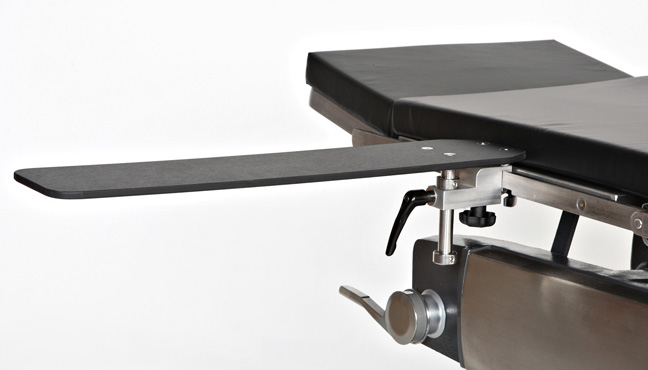

Surgical Armboard, Height Adjustable Design

This surgical armboard is height adjustable to match surgery tables with different table pad thicknesses or tables with or without x-ray tops.
Simple sleek design with easy 180° rotation.
Securely locks to surgical table with simple spin of the knob. Adjusts in height with a quick spin of the handle.
Radiolucent design with phenolic construction means no interference for any x-ray procedures.
Manufactured with 3/8" phenolic. Weight: Just 4½ lbs.
Dimensions: 6" wide x 26" long. Pad sold separately.

Updated 7/24

Why pay $400
with our competitor?

SW-40-401
26" long armboard:
Your cost: $212

SW-40-416
2" thick x 26"
long pad:
Your cost: $63

SW-40-417
3" thick x 26"
long pad:
Your cost: $72

click to enlarge

Features a larger, more
convenient trigger mechanism.

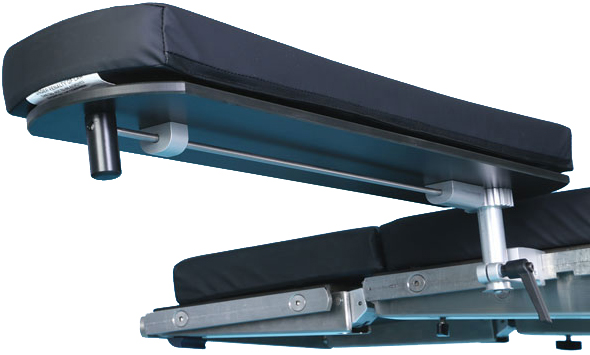

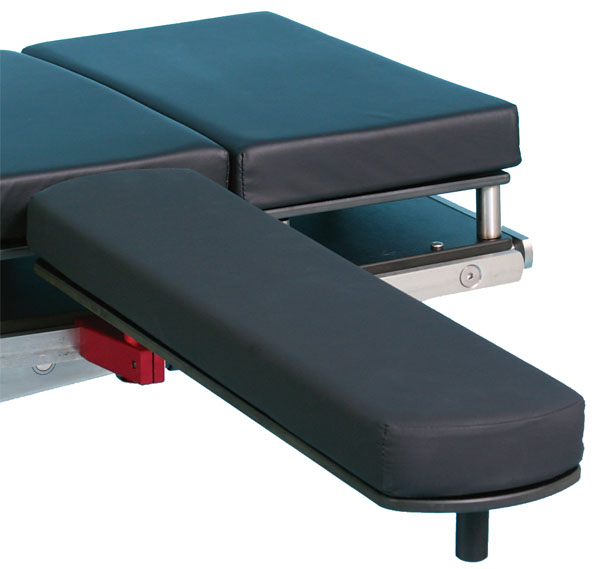

Surgical Armboard, Height Adjustable Design

This surgical armboard is height adjustable to match surgery tables with different table pad thicknesses or tables with or without x-ray tops.
Excellent construction and design but without the high price often charged by O.R. table companies. Features easy 180° rotation.
Securely locks to surgical table with simple spin of the handle. Adjusts in height with a quick spin of the handle.
Includes a radiolucent design with a larger, more convenient trigger mechanism.
Manufactured with 3/8" phenolic. Weight:
Dimensions: 6" wide x 26½" long.

Updated 7/24

SW-80-0009
Surgical armboard
6" wide x 26½" long
without pad:
Your cost: $279

SW-80-508-0071
Deluxe armboard pad,
2" thick x 26½" long:
Your cost: $892

SW-80-508-0151
Softcare armboard pad,
2" thick x 26½" long:
Your cost: $135

click to enlarge

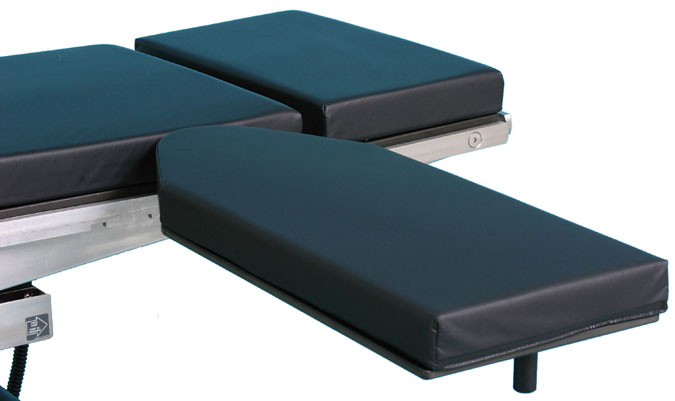

Extra Wide
Surgical Table Armboard
measures 11" wide x 26½" long.

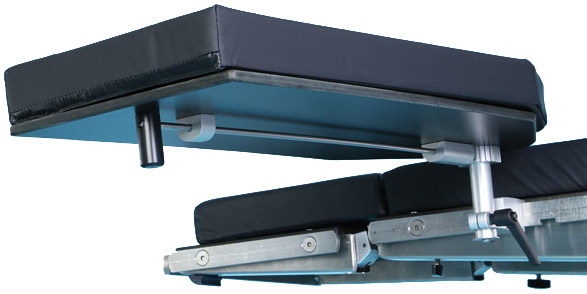

Surgical Armboard, Extra Wide Design

Extra wide 11" wide x 26½" long phenolic armboard offers a larger surface area.
Available in standard fixed height version and adjustable height versions.
It easily connects and locks to standard American made surgical tables.
To adjust armboard vertically, simply place armboard onto siderail, loosen handle and raise to the desired height. Tighten handle.
To swing armboard, pull the large, convenient finger trigger at end of armboard and move to desired position.
Manufactured with 3/8" phenolic.

Updated 7/24

SW-80-0018
Extra wide arm
board w/o pad:
Your cost: $299

SW-80-0017
Adjustable height/
extra wide arm
board w/o pad:
Your cost: $415

SW-80-508-0105
Deluxe 2" thick pad:
Your cost: $140

SW-80-0152
Softcare 2" thick pad:
Your cost: $164

It's lightweight, easy to use and it
slides under your pad in just seconds!

click to enlarge

Maximum positioning flexibility:

There's a 20" and a 23" long section. Use
the section that best suits the length
of your patient's arm and the width
of your stretcher or table pad.

click to enlarge

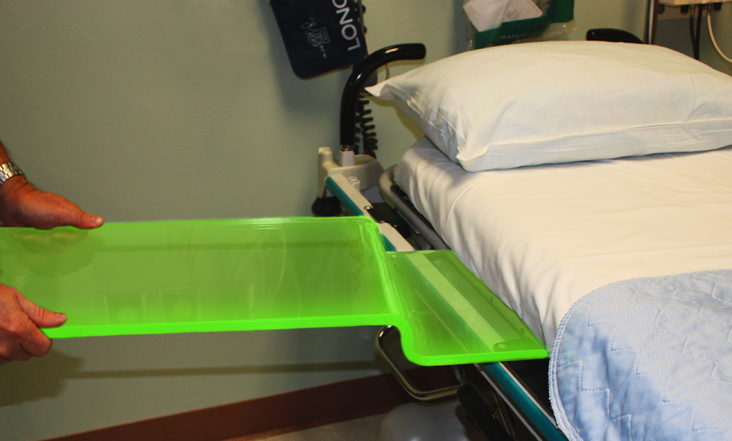

Made of bright green acrylic, it's a
bright addition to any clinical setting.

These tables are extremely sturdy,
simple to clean and store.

click to enlarge

click to enlarge

C-Thru - Armboard & Hand Surgery Tables
(Available in 2 different widths)

Transparent support; that's the whole idea behind these Underpad Mount C-Thru Arm and Hand Surgery Tables.
Choose from the 11" wide or 15" wide version. Use it as an arm/ hand surgery table or as a surgical table armboard.
These C-Thru boards quickly slip under the pad of any surgical table or stretcher. They are held in place by the weight of the pad and the patient. No clamps are needed.
They allow for easy-access for the C-Arm. These lightweight, easy-to-use arm and hand tables are entirely radiolucent.
Available with an optional, detachable single support leg for extra support and stability.
The optional 1" or 2" thick pad allows you to raise the patient's arm so the table is level with your O.R. table or stretcher pad. The bend in the center of this board is 2" high.
If your table or stretcher pad is 2" thick, you can use a disposable arm cradle positioning pad on top of this board to make it nearly level with your table or stretcher pad.
If your pad is 3" thick, you can use the optional 1" thick pad to make it level with your pad. If your pad is 4" thick, you can use the optional 2" thick pad.
Dimensions and weight: 11" or 15" wide x 43" long. Half of it slides under the pad. The other half supports the patient's arm. Weight: Approx. 10 lbs.
There's a 20" and a 23" long section. Use the section that best suits the length of your patient's arm and the width of your stretcher or table pad.
Note: You may need to slide the patient to the opposite side of the stretcher mattress to accommodate taller patients with longer arms.
Click here to see more arm/ hand table choices.

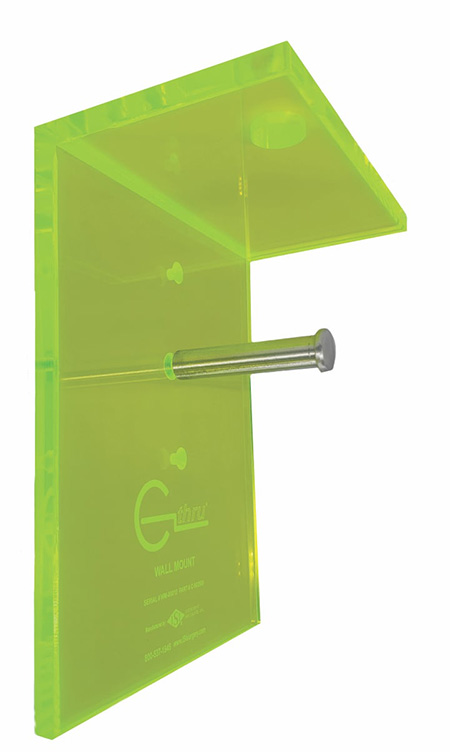

C-Thru Wall Mount for C-Thru Hand Table:
Designed to safely and easily store the above mentioned C-Thru Hand Tables with a 1" or 2" thick pad and optional telescopic leg.
This C-Thru Wall Mount can be purchased individually or as a bundle. The package includes the C-Thru Wall Mount, a 15" wide hand table, a 2" thick pad and a Telescopic Leg.

Updated 7/24

SW-35-C-902717
C-Thru Armboard/
Hand Table, 11" wide
Your cost: $708

SW-35-C-90215
C-Thru Armboard/
Hand Table, 15" wide
Your cost: $886

C-90211
Optional Leg:
Your cost: $385

C-100-1
Optional 1" Thick Pad
for 11" wide table:
Your cost: $90

C-100-2
Optional 2" Thick Pad
for 11" wide table:
Your cost: $107

C-150-1
Optional 1" Thick Pad
for 15" wide table:
Your cost: $112

C-150-2
Optional 2" Thick Pad
for 15" wide table:
Your cost: $129

click to enlarge

Shown above with
optional leg and pad.

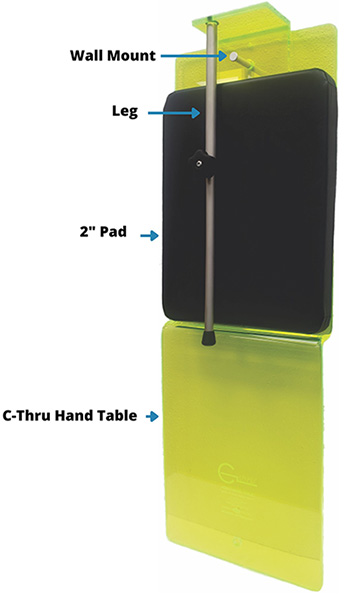

C-902900
C-Thru Wall Mount for
C-Thru Hand Table, pad and Telescopic Leg:
Your cost: $236

C-902220
C-Thru Hand Table Bundle. Includes the
Wall Mount, a 15" wide hand table, 2" thick pad and a Telescopic Leg:
Your cost: $1,470

Note: This represents
a $166 savings when
purchased as
a bundle.

Shoulder Mount Carbon Fiber Armboard

Carbon Fiber Armboard with Pad

Carbon Fiber Armboard, Shoulder Mount Design
(For Medical Imaging Tables)

This shoulder mount carbon fiber armboard provides the highest combination of strength, durability and radiolucency of any armboard on the market today.
You can x-ray through any part of this armboard!
The hexagonal base is placed under the table pad and is held in place by the weight of the patient, allowing for quick and easy installation and removal.
The unique pivoting attachment allows for 180° of lateral adjustment.
Three different pad choices are available for varying degrees of comfort. Standard pad is shown to left.
Call for info/ prices on other comfort level pad choices.
Dimensions: 6" wide x 27" long x ¼" thick.
Armboard pad is sold separately. This is a Standard pad.

Updated 7/24

SW-50-254
27" long Carbon
Fiber armboard:

Your cost: $850
_____________

SW-50-255
Standard 2" thick
x 27" long pad:

Your cost: $197

Carbon Fiber Armboard
Rail Mount Carbon Fiber Armboard

Carbon Fiber Armboard, Rail Mount Design
(For Medical Imaging)

This rail mounted carbon fiber armboard has been engineered for strength, durability and radiolucency.
You can x-ray through any part of this armboard!
Designed to fit any standard accessory rail. Please visit our clamp/ rail page to view our Imaging Table compatible clamp/ rail product.
The swivel design provides 180° of lateral adjustment.
Quick release swivel allows for easy mounting and removal.
Armboard pad includes a combination of ultrafoam, open cell foam and memory foam - for maximum comfort.
Dimensions: 6" wide x 27" long x ¼" thick.
Armboard pad is sold separately.

Updated 7/24

SW-50-250
27" long Carbon
Fiber Armboard

Your cost: $1,190

SW-50-258
Standard 2" thick
x 27" long pad:

Your cost: $318

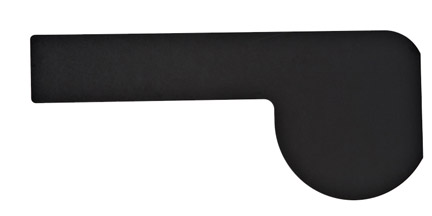

Convenient Under-pad
Mount Armboard

Armboard quickly slides into place
under your table or stretcher pad.

click to enlarge

Note: We offer pads in any thickness
for customers who want to use a
reusable pad with this armboard.

Multi-Use Armboard, Underpad Mount Design

Armboard quickly and effortlessly slides into place under your table or stretcher pad. Allows arm to remain parallel to patient's torso. Ideal for use during insertion of peripheral IV line.
It can be flipped and used on either side of your table or stretcher. It's lightweight weighing in at only 7 lbs.
Compatible with a standard 6" wide x 24" long armboard pad. You can use an existing armboard pad. And you can place some 2" wide Velcro (hook side) to the surface.
Or if you purchase a pad and armboard from us at the same time, we will provide you with 2 pairs of self-adhesive Velcro strips (hook & loop side) that will allow you to place a pad onto either side of this armboard.
Armboard is constructed with 3/8" thick Black phenolic.
Dimensions: 6" wide x 39" long x 3/8" thick. Board width including rounded section that goes underneath the table pad is 17".

Updated 7/24

SW-40-440
Underpad mount armboard:

Your cost: $360
_______________

SW-40-415-2
Deluxe Armboard Pad,
6" wide x 24" long
x 2" thick.

Includes 2 each
2" wide x 20" long
Velcro strips (hook
and loop sides).

Your cost: $63

Note: See below to
view other armboard
pad thicknesses.

Call us at 1 888 424-1740 for personal customer service Monday - Friday 8 am to 6 pm CST or e-mail us at: info@swmedsource.com

Surgery Armboard - Related Products

Surgical Armboard Pads - Choose from 3 different comfort levels
Please measure your existing pads to be certain the correct thickness pads are ordered.
Updated 7/24

Surgical Armboard Pads
Surgery Table Mfg. & Armboard pad thickness	Actual measured thickness	Deluxe Pad with Fusion Cover and welded seams Price and Stock Number	Softcare Pad w/ memory foam, Fusion Cover & welded seams Price and Stock Number	Poly Foam Pad - with Gel inlay and welded seams Price and Stock Number
Amsco 1"	1"	$53 (AP-AM-DW-1)	$66 (AP-AM-SW-1)	$128 (AP-AM-PWG-1)
Amsco 2"	2"	$66 (AP-AM-DW-2)	$75 (AP-AM-SW-2)	$138 (AP-AM-PWG-2)
Amsco 3"	3"	$69 (AP-AM-DW-3)	$81 (AP-AM-SW-3)	$144 (AP-AM-PWG-3)
Amsco 4"	4"	$73 (AP-AM-DW-4)	$90 (AP-AM-SW-4)	$153 (AP-AM-PWG-4)
Skytron 2"	1½"	$62(AP-SK-DW-2)	$74 (AP-SK-SW-2)	$136 (AP-SK-PWG-2)
Skytron 3"	2½"	$66 (AP-SK-DW-3)	$80 (AP-SK-SW-3)	$143 (AP-SK-PWG-3)
Skytron 4"	3½"	$70 (AP-SK-DW-4)	$92 (AP-SK-SW-4)	$150 (AP-SK-PWG-4)
Skytron 5"	4½"	$75 (AP-SK-DW-5)	$96 (AP-SK-SW-5)	$158 (AP-SK-PWG-5)
MDT/ Shampaine 1"	1"	$56 (AP-MDT-DW-1)	$66 (AP-MDT-SW-1)	$129 (AP-MDT-PWG-1)
MDT/ Shampaine 2"	2"	$60 (AP-MDT-DW-2)	$75 (AP-MDT-SW-2)	$137 (AP-MDT-PWG-2)
MDT/ Shampaine 3"	3"	$67 (AP-MDT-DW-3)	$81 (AP-MDT-SW-3)	$144 (AP-MDT-PWG-3)
MDT/ Shampaine 4"	4"	$77 (AP-MDT-DW-4)	$90 (AP-MDT-SW-4)	$153 (AP-MDT-PWG-4)

Note: Armboard pads are sold as individual pads, not by the pair. Standard length for Amsco and Skytron armboard pads is 26". Standard
length for MDT/ Shampaine armboard pads is 24". *Boston Fire Code: Add $15 to cost and #BFC to stock number if your armboard pad
needs to meet Boston Fire Code. Concave Pads: Add $15 to cost and CONCAVE to stock number if you want your armboard
pads to be concave. Warranty covers defects in materials and workmanship. Abuse and normal wear is not covered.

Velcro kit is included with all pads. Pads are shipped FOB Factory. Freight cost is pre-paid &
added to invoice. Delivery: Approximately 3 weeks. Please call or email us for an official
price quote. No returns are allowed on pads due to infection control/ contamination issues.

click to enlarge

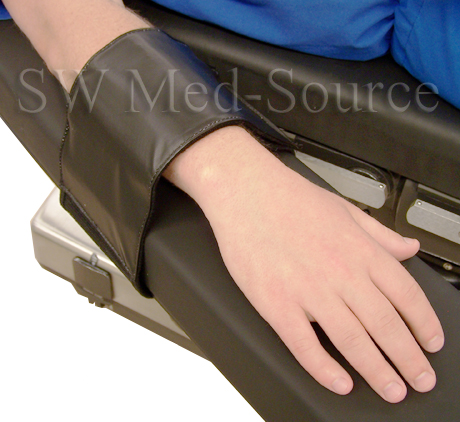

Choose just the Armboard Strap
or the Armboard Strap Kit.

click to enlarge

The Reusable Armboard Strap Kit includes two
Velcro® strips that are placed onto the bottom
side of your armboard. This keeps your
armboard strap from falling onto the floor.

Reusable Armboard Strap

This reusable armboard strap is soft and gentle for your patient's arm.
It's also easier to clean because of the 5" wide x 12" long Comfort vinyl that is sewn into the 30" long Velcro® strap. (See photo)
You can purchase just the Armboard Strap or the Armboard Strap Kit which includes a reusable strap and two 2" x 6" strips of self adhesive Velcro® that will attach to the underside of your armboard.
This permits you to better secure the strap to the underside of the armboard and reduce the risk of the strap falling onto the contaminated floor.
This soft latex-free double faced loop armboard strap features an 18" long section of Velcro® hook sewn at the end. The 29½" overall length is long enough to accommodate nearly any patient arm.
The broad 5" wide strap surface area reduces pressure points on your patient's arm.
If you purchase the Reusable Armboard Strap Kit, you would simply peel off the release liner from the back side of the Velcro®. Then just place the Velcro® strips onto the bottom side of your armboards as shown in the photo.
The Velcro® hook strips then secure the reusable armboard strap so it won't fall onto the potentially contaminated floor.
This further enhances cleanliness and good infection control in the O.R. suite. It also saves time by eliminating the need to retrieve straps that continually fall onto the floor.
It may also increase the life expectancy of your straps since they will stay with the armboard instead of being kicked around and walked on while on the floor.

Updated 7/24
Save 33% compared to our
biggest competitor's price!

SW-20-RAS2
Reusable Armboard
Strap, 5" wide x 30" long
with 12" of Comfort vinyl
sewn to the Velcro.
(For one armboard):
Your cost: $27.00 ea.
Minimum order: 4 ea.
_________

SW-20-RAS2-QTY
Reusable Armboard
Strap, 8 ea. or more
purchased at the
same time:
Your cost: $25.00 ea.
Minimum order: 8 ea.
___________

SW-20-RAS2-KIT
Reusable Armboard
Strap Kit. Two 2" x 6"
strips of self-adhesive
Velcro are included to better secure the strap
to the underside of
the armboard.
(For one armboard):
Your cost: $33.00 ea.
Minimum order: 4 ea.
_________

SW-20-RAS2-
KIT-QTY
Reusable Armboard
Strap with two 2" x 6"
strips of self-
adhesive Velcro.
8 ea. or more
purchased at the
same time:
Your cost: $30.00 ea.
Minimum order: 8 ea.

Armboard Holder

Surgical Armboard Holder

Keep armboards off the floor.

Surgical Armboard Holder

Storing armboards on the surgery table base often result in armboards being knocked to the floor creating a tripping hazard for your surgeon and staff.
Now your armboards can be cleaned and stored safely in an armboard holder mounted on the wall until they are ready to be used.
Durable stainless steel armboard holder attaches to wall with four screws (not supplied).
Two sizes are available: The smaller size allows you to store one standard 6" wide x 24" or 26" long surgical armboard with up to a 3" thick pad.
The larger size allows you to store one 10" wide x 24" or 26" long surgical armboard with up to a 3" thick pad.

Updated 7/24

Two sizes
are available:

SW-40-445
Armboard Holder to
store one 6" wide
armboard w/ up to
a 3" thick pad:

Your cost: $134

SW-40-446
Armboard Holder to
hold 1 ea. 10" wide
Bariatric Armboard
with a 3" thick pad:

Your cost: $160

click to enlarge

Armboard Storage Rack

Stores two standard surgical table armboards.
Use convenient top shelf for clamps or other accessories.
Attaches to wall with four screws. (included)
Dimensions: 20¼” wide x 6½” deep x 7" high.
Weight capacity: Approximately: 40 lbs.
Product weight is 7 lbs.

Updated 7/24

SW-80-0296
Storage Rack/ Shelf to store armboards and
other accessories.

Your cost: $289

Call us at 1 888 424-1740 for personal customer service Monday - Friday 8 am to 5 pm CST or e-mail us at: info@swmedsource.com
